Specifying Whether a Port Is Internal or External

Previous pageReturn to chapter overviewNext page

For most MIDI sound cards and devices, Musician is able to correctly detect whether any corresponding Windows MIDI port is for an internal MIDI device or an external MIDI device. However, for a few MIDI sound cards or devices, Musician cannot correctly detect the device status when the MIDI device driver reports incorrect information. For such unusual cases, Musician provides a way to correct the inaccurate determination of whether the port is internal or external.

If you know that a listed Windows MIDI port is for an external port, but Musician reports it as an internal port, then you will find that you are not able to assign an external MIDI device, such as a MIDI keyboard, to the listed port. This is because Musician only allows external MIDI devices to be connected to external ports.

Conversely, you might find that Musician incorrectly reports an an internal port as an external port.

The way to correct either of these problems is to follow the procedure below for changing the property of the Windows MIDI port from internal to external.

prcarrow To change whether a Windows MIDI port is internal or external:

1.In the MIDI Device Configuration Window, select the MIDI port by clicking its name with the mouse.
2.In the Port menu, choose the Properties command.

    -- OR --

    Instead of selecting the port and choosing the Port Properties command, double-click or right-click the port name.

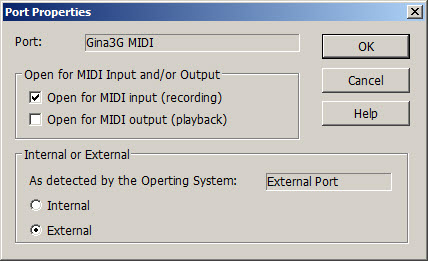

    Musician will display the Port Properties dialog, such as the following:



3.If the operating system has incorrectly detected the port as Internal, you can click to select "External" (or vice versa).
4.Musician will warn you if "Your assignment" for Internal or External differs from Musician's detection for the port. In the confirmation dialog, choose "Yes" if you are  certain that you have correctly specified whether the port is internal or external. Note, however, that you can later change the specification again if you have made the wrong choice.
