Editing the Music Notation > Adding Notes > Adding Notes with the Mouse > Adding Notes with Mouse by Choosing Durations from the Note Palette

This basic method for adding notes uses the mouse, and optionally the computer keyboard or Virtual Keyboard, but not a music keyboard.

The overall procedure for adding notes this way is:

1.	Click on the Notes, Rests tab, and then the Notes button

Notes_tab-Notes_button .

2.	Select the note duration value from the Note Palette.

3.	Specify the voice of the note, which determines the direction (up or down) of the stem attached to the note.

4.	Use the Beat Ruler to determine the location where you want the note to be added, and click the mouse at the desired location.

5.	Determine the pitch of the new note by the vertical position of the mouse click on the staff, and optionally, by later dragging the pitch up or down with the mouse.

This basic method for adding notes is illustrated in the following example, where an eighth note is added below a quarter note.

Practice adding notes with different note durations and voices (stem directions):

1.	Create or open a song file.

2.	Click on the Notes, Rests tab, and then the Notes button

Notes_tab-Notes_button .

3.	If the Note Palette is not already showing, type SHIFT+N to display it:

4.	Prepare to add a quarter note to the score by clicking the quarter note button in the Note Palette, or by typing "4".

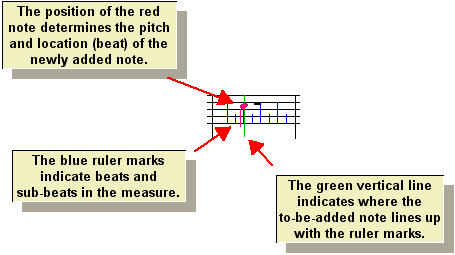

5.	Move the mouse to the measure where you want to add the quarter note. Use the Beat Ruler to determine the exact beat location within the measure for the new note:

AddingNotesWithMouseIntroduction

6.	Click the mouse at the beat location and the staff line or staff space where you want to add the note. The note will be added to the score, and will automatically be selected for further editing, as indicated with the blue highlighting of the notehead:

AddingNotesIntroNoteAdded

Notice that Composer automatically adds rests surrounding the newly added note.

7.	Prepare to add an eighth note by clicking the eighth note button in the Note Palette, or by typing "8" for eighth note:

NotePaletteWith8thNotesSelected

8.	Click the Lower Voice button, to prepare to add the eighth in the lower voice.

-- OR --

Type "lv" for lower voice.

9.	Move the mouse to one eighth note past the quarter note added above, and at a lower staff position:

AddingNotesIntroBeforeAddingLowerVoiceNote

10.

Click the mouse. Notice how the new eighth note has a downward pointing stem. and how the quarter note's stem direction has been automatically changed to an upward direction. Composer also fills in the extra eighth note rest in the lower voice below the quarter note. This is the proper way to separate voices singing or playing different note durations in the same staff:

AddNoteAfterAddingEighthNoteBelowQuarterNote

11.	Change the pitch of the newly added note up a half-step by typing "#" to add a sharp accidental, or by hitting the key while holding down the "P" key for "pitch up":

AddNoteAfterRaisingPitchOf8thNote

In the topics that follow, the above basic procedure for adding notes is described in further detail.
