A Cakewalk(tm) Instrument Description (.ins) file contains most of the information needed for a MIDI device description in Musician. The information is the list of MIDI bank and patch names for that device. If you own a Cakewalk software product, then you can borrow instrument descriptions that Cakewalk maintains in INS files installed on your computer. If you do not own a Cakewalk software product, you can download an INS file from Cakewalk's web site, as described below.

The procedure for importing a device description from a Cakewalk INS file is similar to the procedure for importing a device description from a Notation Software MDD file.

There are two ways to import the patch names for your MIDI device from a Cakewalk INS file. The easier of the two ways is to use the Quick MIDI Device Setup command in the Setup menu. Use the Import Sound Names option in the Quick MIDI Device Setup dialog box. For details, see the topic Quick MIDI Device Setup.

Another less convenient way to import the patch names for your MIDI device from a Cakewalk INS file is described below. There are two minor advantages to using this method. First, you can preview the list of MIDI bank names and patches for a device that you are about to import. Second, this method offers an option that you can import a single bank of patches for a device rather than all of the banks.

prcarrowTo download an INS file:

1.Some of our users have collected and shared INS files which can be found on our User Forum at http://www.notation.com/vb-forum/showthread.php?t=3891 or by searching the User Forum for "Cakewalk INS".  If you do not see your device listed there, you can use your favorite browser to search the internet for "cakewalk INS" and list your device name in the search.
2.However you find it, download the INS file(s) for your device(s).
3.Make note of the directory to which the file(s) has been downloaded.
4.Once you have downloaded the .ins file, follow the instructions below for importing the .ins file into Musician .

prcarrowTo import a device description from a Cakewalk INS file:

1.Open the MIDI Device Configuration Window by choosing the MIDI Device Configuration command from the Setup menu.

-- OR --

Type "qdc" for Quick Device Configuration.

2.In the MIDI Device Configuration Window, choose the Import command from the Device menu.

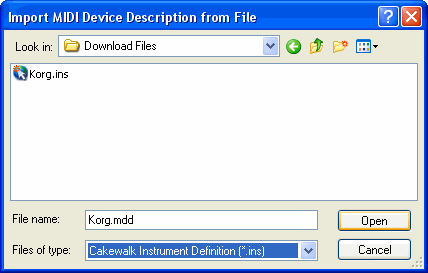

    Musician will present the Import MIDI Device Description from File dialog box:

    DownloadINSFileDlg

3.In the above dialog box, navigate to the directory to which you downloaded the INS file.
4.In the dialog box, select the INS file, and click the Open button.
    Musician will display the Import MIDI Device Description window, as illustrated here:

ImportMDDWindow

5.In the panel at the right side of the window, click the model number (the name, not the '+' symbol) of the device description you want to import.
6.To optionally review the list of MIDI banks and patch names for a device, click the '+' symbol next to the device name.

Musician will display a list of the MIDI banks for that device. If you click the "+" symbol next to one of the MIDI bank names, then Musician will display the patch names for that bank in the lower half of the window. You can selectively import patch names for a specific bank of a device, but there is usually no need to do this.

You can optionally preview the patch names for a given bank of a device by selecting the bank in the right panel.

7.In the left panel, select the MIDI output port that sends the MIDI output to the MIDI output device.
8.Click the Import button.

Musician will list the newly imported device below the MIDI output port to which it is "connected":

ImportDeviceCompleted

When you assign a staff to the external output device connected to an output port, you can refer to each the name of the port, or the name of the external device. In this example, you can refer to either "Out-A USB MidiSport 2x2" or "Korg M1". You will find it preferable to refer to the device name because then you can assign a sound to the staff by referring to the name of a MIDI bank and patch (instrument) rather than refer to the bank and patch numbers.

8.Click the Exit button.

    Musician will add the newly imported device in the MIDI Device Configuration Window.

prcarrowTo import a single MIDI bank from an MDD file into a previously added device:

B816Follow the same procedure as above, except select a MIDI bank in the right panel, and a device in the left panel.
